Fix COA Leveler: Innovation and Precision for Leveling

The Ideal System for Fast and Precise Leveling

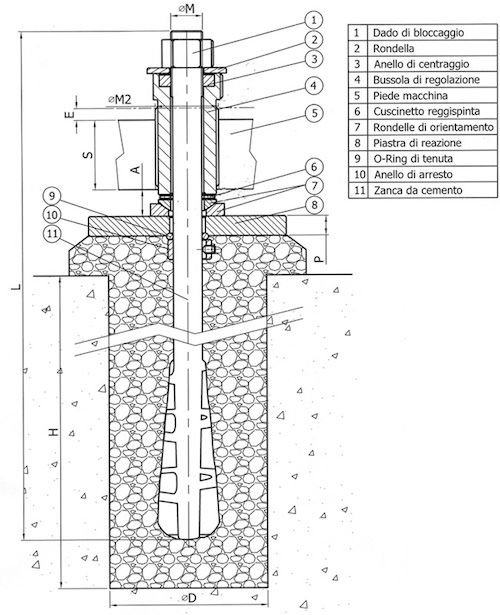

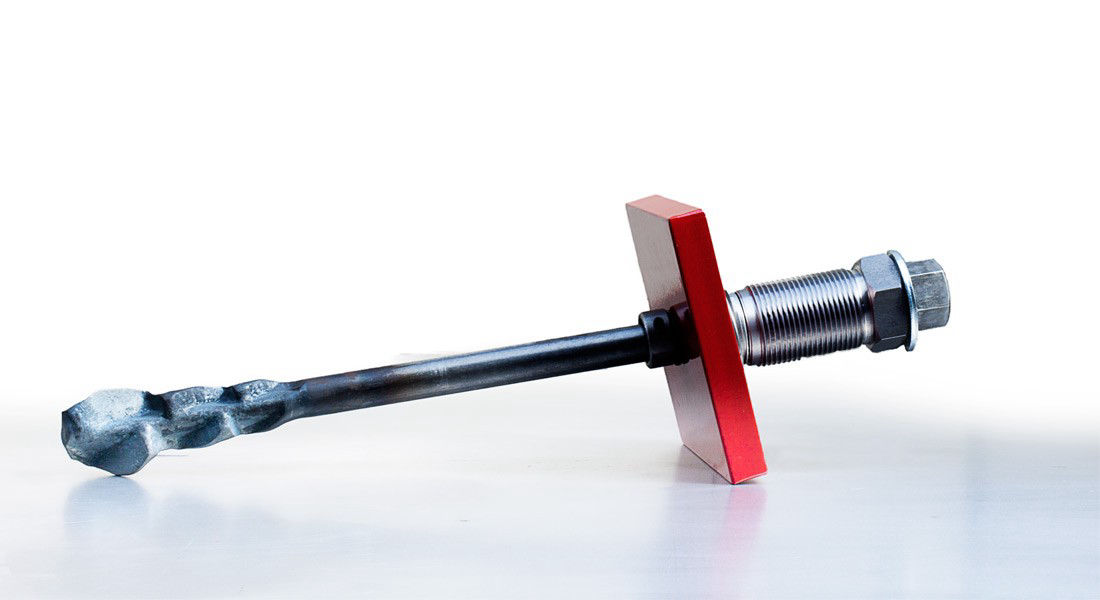

The Fix COA leveler is an innovative and versatile solution consisting of three main components: a fine-threaded bushing, a foundation bolt, and a reaction plate. This system ensures stability and ease of adjustment, making it an excellent choice for a wide range of industrial applications.

Key Features:

Robust and Stable Structure
The foundation bolt, securely embedded in the foundation block, passes through the reaction plate and threaded bushing, forming a rigid system with a retaining nut.
Precise and Smooth Adjustment
The fine thread pitch, combined with a thrust bearing between the bushing and plate, enables light and easily controlled adjustments.
360° Axial Orientation
Thanks to the spherical washer, the system provides vertical orientation across all axes.
Bidirectional Adjustment Stroke
The coaxial screw system allows vertical movement without the need for pre-calibrated leveling, surpassing traditional wedge systems.


Advantages of Fix COA:

Maximum precision and versatility
Reduced installation times
Cost-effective and functional solution

If you’re looking for a reliable, easy-to-install, and highly efficient leveling system, the Fix COA leveler is the perfect solution for you.
